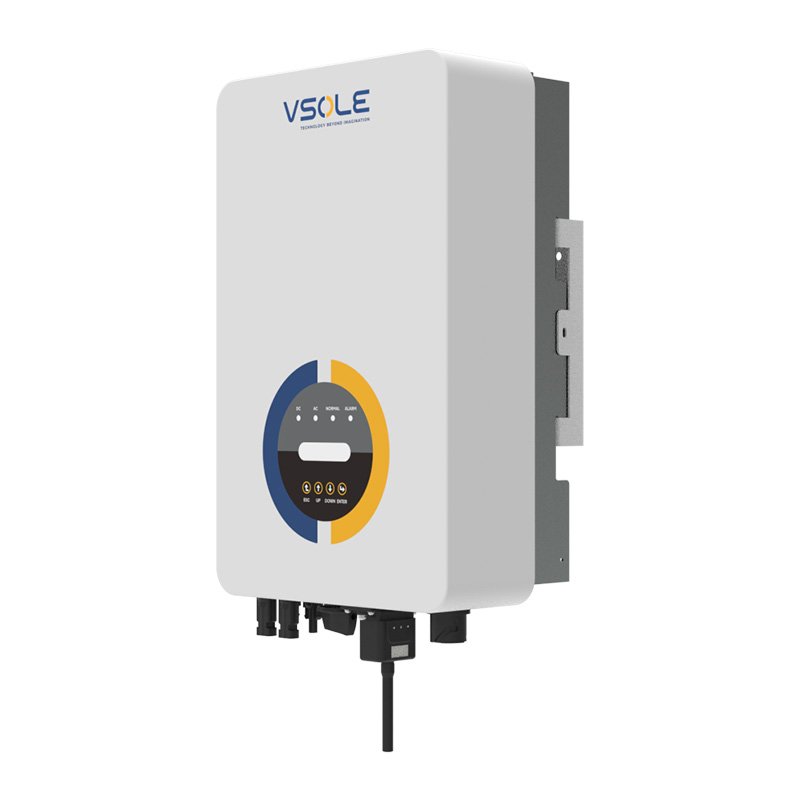

9KW Grid-Tie Solar Inverter
Grid Tie Inverter Three Phase
About 9KW Solar Inverter
The 9kW grid-tie solar inverter is a high-performance energy solution designed specifically for Three Phase systems. It ensures seamless integration with the grid, efficient solar energy conversion, and reliable operation, making it ideal for larger residential setups and small commercial applications.
Configurations
- Three Phase:
Designed for systems requiring balanced power distribution, the three-phase configuration ensures enhanced efficiency and consistent performance. It integrates solar energy with grid power for optimized energy usage and reduced electricity costs.
Authorized V-Sole Dealer
As an authorized dealer of V-Sole inverters, we provide advanced solar solutions with exceptional durability, cutting-edge technology, and superior reliability. V-Sole inverters are known for their high efficiency, ease of use, and seamless grid compatibility.
The 9kW Grid-Tie Solar Inverter offers robust performance, a compact design, and user-friendly operation, ensuring long-term reliability and significant energy savings.
Choose the 9kW Grid-Tie Solar Inverter today for an efficient, cost-effective, and sustainable energy solution tailored to your needs.
For More Info:
GRID TIE INVERTER - THREE PHASE
Advanced Features:
- Maximum efficiency reaches up to 98.9%, ensuring optimal energy conversion.
- Comes with a heavy-duty, built-in DC isolation switch for enhanced safety.
- special external color with Epoxy Novolac coating for better heat dissipation and durability.
- Supports a maximum DC input current per string, compatible with solar panels up to 800W.
- Equipped with Type II DC/AC SPD and frequency drop control technology for better protection.
- Higher capacity models include intelligent fan-based cooling for efficient heat management.
- Compact, lightweight design allows for easy installation and space-saving.
- Supports RS485 and remote monitoring via Wi-Fi or GPRS for easy control and tracking.
- Includes multiple protective features to ensure the system operates safely and efficiently.
- Allows for DC overloading up to 20%, providing flexibility in handling high loads.
Technical Specification:
| CAPACITY (KW) | 9KW |
|---|---|
| MODEL NUMBER | VS-092T |
| INPUT (DC) | |
| Max. DC Input Power (KW) | 10.8 |
| Max. DC I/P (Vdc) | 1000V |
| Max. MPPT I/P Current (A) | 20A + 26A |
| MPPT Short Circuit Current (A) | 30A + 39A |
| MPPT Tracking Voltage (Vdc) | 180 – 1000V |
| Start-Up Voltage (V) | 200V |
| Number of MPPT Tracker | 2 |
| Strings per MPPT Tracker | 1 + 2 |
| OUTPUT (AC) | |
| Rated Output Power (KW) | 9 |
| Rated Grid Voltage (V) / Range | 415V |
| Voltage Operating Range (V) | 280 – 455V |
| Rated Grid Frequency (Hz) / Range | 50Hz/(+-5%) |
| Rated Output Current AC (A) | 13.8 |
| AC Connection | 3P + N + PE |
| THDI (%) | <3% |
| Output Power Factor | 0.9 leading to 0.9 lagging |
| EFFICIENCY | |
| Max. Conversion Efficiency (%) | 98.3% |
| Max. Euro Efficiency (%) | 97.5% |
| MPPT Efficiency (%) | >99% |
| PROTECTION | |
| Anti-Islanding Protection | YES |
| DC Reverse Polarity Protection | YES |
| Insulation Resistance Protection | YES |
| Ground Fault Protection | YES |
| Output Over Current Protection | YES |
| Output Short Circuit Protection | YES |
| Output Over Voltage Protection | YES |
| DC Isolator Switch | YES |
| Surge Protection | DC: Type II / AC: Type II |
| GENERAL DATA | |
| Dimensions (W*H*D) mm | 362W*527H*220D |
| Weight (Kg) | 20.0 |
| Topology | Transformerless |
| Noise Emission (dB) | <45dB |
| Display | LED with LCD Display |
| Cooling Method | Intelligent Fan Cooling |
| Operating Ambient Temperature | (-25°C ~ +65°C) |
| Operating Humidity | 0% – 100% |
| Max. Operating Altitude (m) | 2000 (>2000 Derating) |
| Ingress Protection | IP65 |
| Standard Warranty | 10 Years |
| CONNECTION TYPE | |
| DC Connectors | MC-4 |
| Ingress AC Plug | IP65 rated plug |
| Communication Modes | WiFi / GPRS / RS 485 / Local Monitoring |
| Remote Monitoring | YES |
