6KW Hybrid Solar Inverter
Hybrid Inverter - Single Phase
Hybrid Inverter - Three Phase
About 6KW Solar Inverter
The 6kW hybrid solar inverter is a powerful energy solution crafted to meet the needs of both residential and commercial systems. It combines solar energy, battery storage, and grid connectivity to ensure efficient energy management and reliable backup power. This advanced inverter is available in Single Phase and Three Phase configurations, providing flexibility to suit diverse energy requirements. Whether you aim to reduce energy costs, ensure uninterrupted power supply, or achieve energy independence, the 6kW hybrid inverter is the perfect choice.
Configurations
Single Phase:
This configuration is ideal for homes, where it seamlessly integrates solar energy and battery storage to provide continuous power. It reduces reliance on the grid while ensuring backup power during outages, making it a reliable choice for residential applications.Three Phase:
Designed for larger homes or small commercial setups, the three-phase configuration ensures balanced power distribution and higher efficiency. It is perfect for energy-intensive systems, delivering consistent and reliable performance.
Authorized V-Sole Dealer
As an authorized dealer of V-Sole inverters, we offer state-of-the-art solar solutions built with advanced technology, exceptional durability, and outstanding performance. V-Sole inverters are renowned for their efficiency, reliability, and ease of use, making them a trusted choice for modern energy systems.
The 6kW Hybrid Solar Inverter combines robust performance, smart energy management, and advanced safety features, ensuring smooth operation and long-lasting reliability.
Choose the 6kW hybrid inverter for a seamless energy experience, enhanced savings, and unmatched peace of mind. Your journey to energy independence starts here!
For More Info:

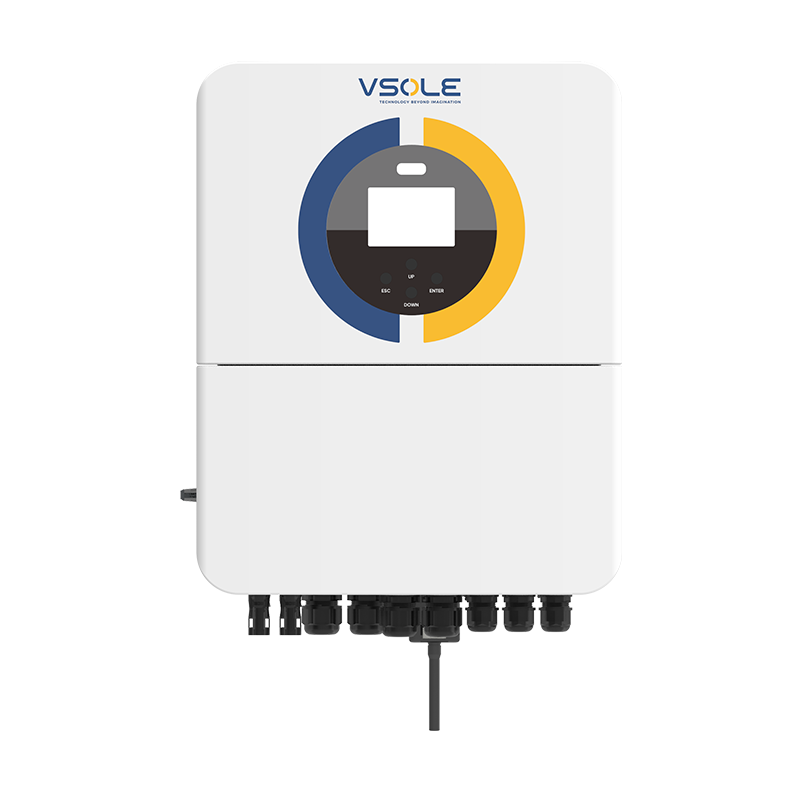

HYBIRD INVERTER - SINGLE PHASE
Advanced Features:
- Seamless changeover in just 4ms, making it suitable for use as a UPS.
- Ensures enhanced battery performance and protection for Li-ion, Lead Acid, or LiFePO4 batteries.
- Delivers 100% unbalanced load across each phase, with up to 50% of the rated power on any phase (Three Phase).
- Handles blackouts and brownouts efficiently, with or without batteries, and supports grid export.
- Programmable preference for PV, Battery, or Grid as the primary power source.
- Reduces or limits maximum demand to avoid penalties with Grid Peak Compensation Mode.
- Optimized for high-demand appliances like air conditioners, water heaters, and grid-tie inverters.
- Compatible with both DC and AC coupling, enabling seamless integration with existing solar systems.
- Supports up to 16 units in parallel for both on-grid and off-grid configurations, and allows multiple batteries in parallel.
- Charging and discharging currents up to 240A with transformer isolation design for 48V low-voltage batteries.
- Supports direct battery charging and energy storage from diesel generators, ensuring uninterrupted 24/7 power.
- Achieves maximum conversion efficiency of 97.6% and battery charging efficiency of 95.5%.
Technical Specification:
| CAPACITY (KW) | 6KW 48V |
|---|---|
| MODEL NUMBER | VS-HY06S |
| BATTERY INPUT DATA | |
| Battery Type | Lead-acid or Lithium-lon |
| Battery Voltage Range (V) | 40~60 |
| Max. Charging Current (A) | 135 |
| Max. Discharging Current (A) | 135 |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV STRING INPUT DATA | |
| Max. DC Input Power (W) | 7200 |
| Rated PV Input Voltage (V) | 370V |
| Voltage Operating Range (V) | 125~500V |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Full Load DC Voltage Range (V) | 300-425 |
| PV Input Current (A) | 18+18 |
| Max. PV Isc Current (A) | 27+27 |
| Number of MPPT/Strings per MPPT | 2/1+1 |
| AC OUTPUT DATA | |
| Rated AC Output Power (W) | 6000 |
| Max. AC Output Power (W) | 6600 |
| AC Output Rated Current (A) | 26.1 |
| Max. AC Output Current (A) | 30 |
| Max. Continuous AC Passthrough Current (A) | 40 |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| Power Factor | 0.9 leading to 0.9 lagging |
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) |
| Grid Connection | Single Phase (L+N+PE) |
| DC Injection Current (mA) | <0.5% IN |
| EFFICIENCY | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97% |
| MPPT Efficiency | 99.90% |
| PROTECTION | |
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
| Output Over Voltage Protection | DC Type II / AC Type III |
| GENERAL DATA | |
| Operating Temperature Range (°C) | (-45°C ~ 60°C) |
| Cooling | Natural Cooling |
| Noise (dB) | ≤30db |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 19.0 |
| Dimension excluding connectors & Brackets (mm) | 376W x 470H x 241D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Standard Warranty | 5 Years (Extendable up to 10 Years) |

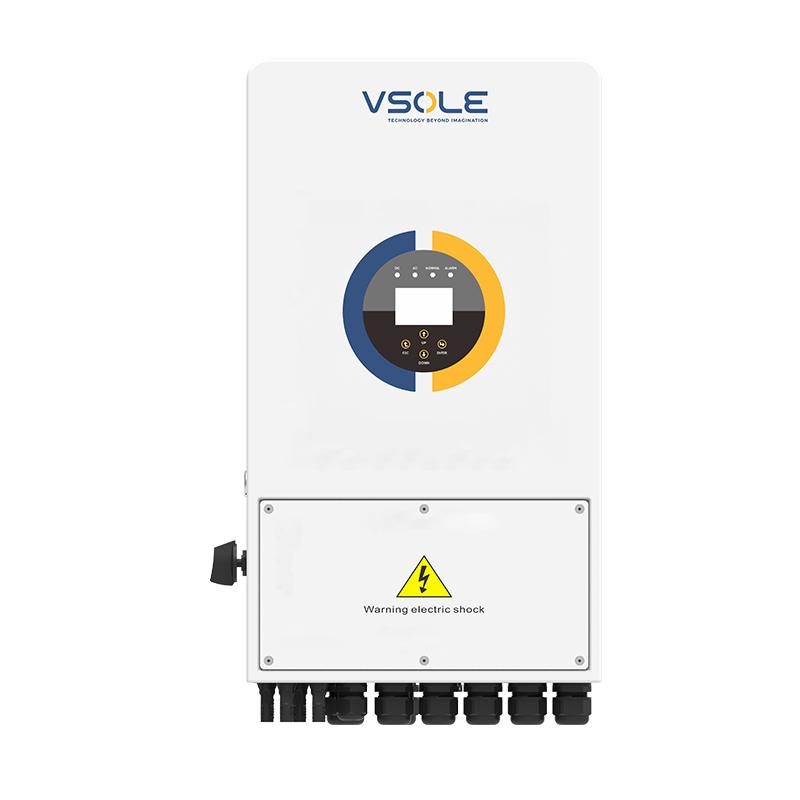

HYBRID INVERTER - THREE PHASE
Advanced Features:
- Seamless changeover in just 4ms, making it suitable for use as a UPS.
- Ensures enhanced battery performance and protection for Li-ion, Lead Acid, or LiFePO4 batteries.
- Delivers 100% unbalanced load across each phase, with up to 50% of the rated power on any phase (Three Phase).
- Handles blackouts and brownouts efficiently, with or without batteries, and supports grid export.
- Programmable preference for PV, Battery, or Grid as the primary power source.
- Reduces or limits maximum demand to avoid penalties with Grid Peak Compensation Mode.
- Optimized for high-demand appliances like air conditioners, water heaters, and grid-tie inverters.
- Compatible with both DC and AC coupling, enabling seamless integration with existing solar systems.
- Supports up to 16 units in parallel for both on-grid and off-grid configurations, and allows multiple batteries in parallel.
- Charging and discharging currents up to 240A with transformer isolation design for 48V low-voltage batteries.
- Supports direct battery charging and energy storage from diesel generators, ensuring uninterrupted 24/7 power.
- Achieves maximum conversion efficiency of 97.6% and battery charging efficiency of 95.5%.
Technical Specification:
| CAPACITY (KW) | 6KW 48V |
|---|---|
| MODEL NUMBER | VS-HY06T |
| BATTERY INPUT DATA | |
| Battery Type | Lead-acid or Lithium-lon |
| Battery Voltage Range (V) | 40~60 |
| Max. Charging Current (A) | 145 |
| Max. Discharging Current (A) | 145 |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV STRING INPUT DATA | |
| Max. DC Input Power (W) | 7800 |
| Rated PV Input Voltage (V) | 550 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Full Load DC Voltage Range (V) | 350-650 |
| PV Input Current (A) | 20+20 |
| Max. PV Isc Current (A) | 30+30 |
| Number of MPPT/Strings per MPPT | 2/1+1 |
| AC OUTPUT DATA | |
| Rated AC Output Power (W) | 6000 |
| Max. AC Output Power (W) | 6600 |
| AC Output Rated Current (A) | 8.7 |
| Max. AC Output Current (A) | 9.6 |
| Max. Continuous AC Passthrough Current (A) | 45 |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| Power Factor | 0.9 leading to 0.9 lagging |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Connection | Three Phase (3L+N+PE) |
| DC Injection Current (mA) | <0.5% IN |
| EFFICIENCY | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97% |
| MPPT Efficiency | 99.90% |
| PROTECTION | |
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection |
| Output Over Voltage Protection | DC Type II / AC Type III |
| GENERAL DATA | |
| Operating Temperature Range (°C) | (-45°C ~ 60°C) |
| Cooling | Smart Cooling |
| Noise (dB) | ≤45db |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 35.2 |
| Dimensions (W*H*D) mm | 386W x 660H x 250D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Standard Warranty | 5 Years (Extendable up to 10 Years) |
