6KW Grid-Tie Solar Inverter
Grid Tie Inverter Single Phase
Grid Tie Inverter Three Phase
About 6KW Solar Inverter
The 6kW grid-tie solar inverter is a high-performance energy solution designed for both Single Phase and Three Phase systems. It seamlessly integrates solar energy with the grid, ensuring efficient energy conversion and significant savings on electricity bills. Perfect for residential and small commercial setups, this inverter delivers reliable performance and long-term efficiency.
Configurations
Single Phase:
Ideal for residential setups, the single-phase configuration ensures smooth solar energy conversion and integration with the grid. It helps reduce electricity costs while providing reliable power for moderate energy needs.Three Phase:
Designed for larger homes or small businesses, the three-phase configuration balances power distribution and enhances overall efficiency. It’s perfect for systems with higher energy demands, delivering consistent and reliable energy output.
Authorized V-Sole Dealer
As an authorized dealer of V-Sole inverters, we provide cutting-edge solar solutions that combine advanced technology, exceptional durability, and seamless grid integration. V-Sole inverters are trusted for their efficiency and ease of use, making them the ideal choice for modern energy systems.
The 6kW Grid-Tie Solar Inverter offers a compact design, easy installation, and robust performance, making it the perfect choice for clean and cost-effective energy solutions.
Choose the 6kW Grid-Tie Solar Inverter today and experience reliable power with significant energy savings!
For More Info:

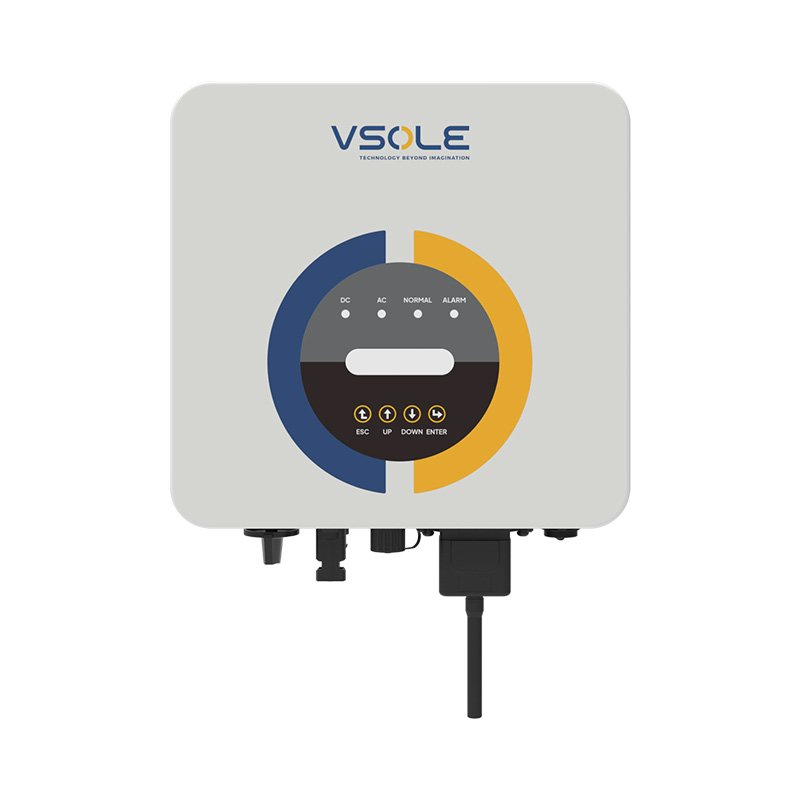

GRID TIE INVERTER - SINGLE PHASE
Advanced Features:
- Capable of handling DC overloads up to 10%, ensuring more reliable operation.
- Features a high DC to AC ratio to maximize energy yields.
- Supports up to 800W per panel for compatibility with larger systems.
- Uses H-Bridge, T-type topology, and SPWM for efficient performance.
- Epoxy Novolac coating for better heat resistance and thermal management.
- Offers a low voltage start-up of just 80V, making it ideal for diverse solar setups.
- Easy to install thanks to its compact, lightweight design.
- Uses IDA technology with multiple MPPTs to optimize power output.
- Includes inbuilt surge protection on AC and DC sides for safe operation.
- Operates quietly with natural convection cooling, eliminating the need for fans.
- RS485 for remote monitoring via Wi-Fi/GPRS with web and app control.
- Zero export models (External CT required) to limit energy export.
Technical Specification:
| CAPACITY (KW) | 6 |
|---|---|
| MODEL NUMBER | VS-602S |
| INPUT (DC) | |
| Max. DC Input Power (KW) | 6.6 |
| Max. DC I/P (Vdc) | 600V |
| Max. MPPT I/P Current (A) | 20A |
| MPPT Short Circuit Current (A) | 30A |
| MPPT Tracking Voltage (Vdc) | 80-600V |
| Min. Start Voltage (V) | 80V |
| Number of MPPT Tracker | 1 / 2 |
| Strings per MPPT Tracker | 1 |
| OUTPUT (AC) | |
| Rated Output Power (KW) | 6 |
| Rated Grid Voltage (V) | 230V |
| Voltage Operating Range (V) | 170V – 285V |
| Rated Grid Frequency (Hz) / Range | 50Hz (+-5%) |
| Rated Output Current AC (A) | 28.7 |
| AC Connection | P + N + PE |
| THDI (%) | <3% |
| Output Power Factor | 0.9 leading to 0.9 lagging |
| EFFICIENCY | |
| Max. Conversion Efficiency (%) | 97.5% |
| Max. Euro Efficiency (%) | 97.3% |
| MPPT Efficiency (%) | >99% |
| PROTECTION | |
| Anti-Islanding Protection | YES |
| DC Reverse Polarity Protection | YES |
| Insulation Resistance Protection | YES |
| Ground Fault Protection | YES |
| Output Over Current Protection | YES |
| Output Short Circuit Protection | YES |
| Output Over Voltage Protection | YES |
| DC Isolator Switch | NO |
| Surge Protection | DC: Type III / AC: Type III |
| GENERAL DATA | |
| Dimensions (W*H*D) mm | 305W*280H*180D |
| Weight (Kg) | 7.8 |
| Topology | Transformerless |
| Noise Emission (dB) | <25dB |
| Display | LED with LCD Display |
| Cooling Method | Natural Cooling |
| Operating Ambient Temperature | (-25°C ~ +65°C) |
| Operating Humidity | 0% – 100% |
| Max. Operating Altitude (m) | 2000 (>2000 Derating)m |
| Ingress Protection | IP65 |
| Standard Warranty | 10 Years |
| CONNECTION TYPE | |
| DC Connectors | MC-4 |
| Ingress AC Plug | IP65 rated plug |
| Communication Modes | WiFi / GPRS / RS 485 / Local Monitoring |
| Remote Monitoring | YES |
GRID TIE INVERTER - THREE PHASE
Advanced Features:
- Maximum efficiency reaches up to 98.9%, ensuring optimal energy conversion.
- Comes with a heavy-duty, built-in DC isolation switch for enhanced safety.
- special external color with Epoxy Novolac coating for better heat dissipation and durability.
- Supports a maximum DC input current per string, compatible with solar panels up to 800W.
- Equipped with Type II DC/AC SPD and frequency drop control technology for better protection.
- Higher capacity models include intelligent fan-based cooling for efficient heat management.
- Compact, lightweight design allows for easy installation and space-saving.
- Supports RS485 and remote monitoring via Wi-Fi or GPRS for easy control and tracking.
- Includes multiple protective features to ensure the system operates safely and efficiently.
- Allows for DC overloading up to 20%, providing flexibility in handling high loads.
Technical Specification:
| CAPACITY (KW) | 6 |
|---|---|
| MODEL NUMBER | VS-602S |
| INPUT (DC) | |
| Max. DC Input Power (KW) | 7.2 |
| Max. DC I/P (Vdc) | 1000V |
| Max. MPPT I/P Current (A) | 20A |
| MPPT Short Circuit Current (A) | 30A |
| MPPT Tracking Voltage (Vdc) | 120 – 1000V |
| Start-Up Voltage (V) | 140V |
| Number of MPPT Tracker | 1 / 2 |
| Strings per MPPT Tracker | 1 |
| OUTPUT (AC) | |
| Rated Output Power (KW) | 6 |
| Rated Grid Voltage (V) / Range | 415V |
| Voltage Operating Range (V) | 280 – 455V |
| Rated Grid Frequency (Hz) / Range | 50Hz (+-5%) |
| Rated Output Current AC (A) | 9.2 |
| AC Connection | 3P + N + PE |
| THDI (%) | <3% |
| Output Power Factor | 0.9 leading to 0.9 lagging |
| EFFICIENCY | |
| Max. Conversion Efficiency (%) | 98.3% |
| Max. Euro Efficiency (%) | 97.5% |
| MPPT Efficiency (%) | >99% |
| PROTECTION | |
| Anti-Islanding Protection | YES |
| DC Reverse Polarity Protection | YES |
| Insulation Resistance Protection | YES |
| Ground Fault Protection | YES |
| Output Over Current Protection | YES |
| Output Short Circuit Protection | YES |
| Output Over Voltage Protection | YES |
| DC Isolator Switch | YES |
| Surge Protection | DC: Type II / AC: Type II |
| GENERAL DATA | |
| Dimensions (W*H*D) mm | 283W*463H*178D |
| Weight (Kg) | 11.0 |
| Topology | Transformerless |
| Noise Emission (dB) | <45dB |
| Display | LED with LCD Display |
| Cooling Method | Natural Cooling |
| Operating Ambient Temperature | (-25°C ~ +65°C) |
| Operating Humidity | 0% – 100% |
| Max. Operating Altitude (m) | 2000 (>2000 Derating) |
| Ingress Protection | IP65 |
| Standard Warranty | 10 Years |
| CONNECTION TYPE | |
| DC Connectors | MC-4 |
| Ingress AC Plug | IP65 rated plug |
| Communication Modes | WiFi / GPRS / RS 485 / Local Monitoring |
| Remote Monitoring | YES |
