1KW Solar Inverter
About 1KW Solar Inverter
The 1kW solar inverter is a cost-effective energy solution tailored for Single Phase systems. It ensures smooth solar energy conversion, grid integration, and reliable performance, making it perfect for small homes or applications with moderate energy needs.
Configuration
- Single Phase:
Designed for residential setups, this configuration efficiently converts solar energy for everyday use while seamlessly integrating with the grid. It’s ideal for homes looking to lower electricity bills and optimize solar energy utilization.
Authorized V-Sole Dealer

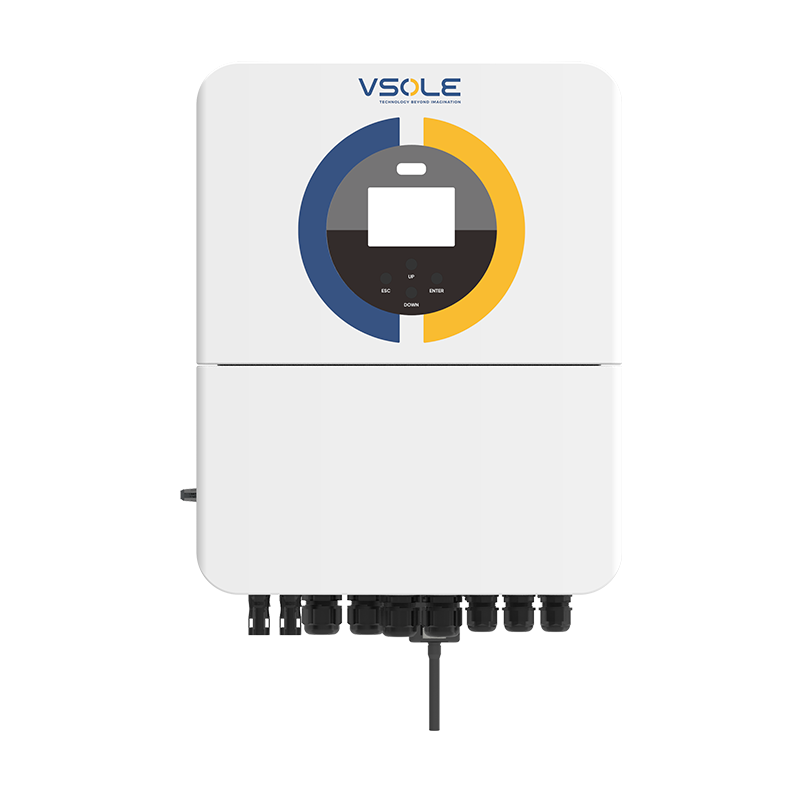

As an authorized dealer of V-Sole inverters, we provide advanced solar solutions built with cutting-edge technology, durability, and reliability. V-Sole inverters are known for their high efficiency, ease of use, and seamless performance.
The 1kW Solar Inverter is compact, lightweight, and easy to install, making it a perfect entry-level solution for solar energy systems.
Choose the 1kW Solar Inverter today for reliable performance, energy savings, and clean energy at an affordable price!
For More Info:
GRID TIE INVERTER - SINGLE PHASE
Advanced Features:
- Capable of handling DC overloads up to 10%, ensuring more reliable operation.
- Features a high DC to AC ratio to maximize energy yields.
- Supports up to 800W per panel for compatibility with larger systems.
- Uses H-Bridge, T-type topology, and SPWM for efficient performance.
- Epoxy Novolac coating for better heat resistance and thermal management.
- Offers a low voltage start-up of just 80V, making it ideal for diverse solar setups.
- Easy to install thanks to its compact, lightweight design.
- Uses IDA technology with multiple MPPTs to optimize power output.
- Includes inbuilt surge protection on AC and DC sides for safe operation.
- Operates quietly with natural convection cooling, eliminating the need for fans.
- RS485 for remote monitoring via Wi-Fi/GPRS with web and app control.
- Zero export models (External CT required) to limit energy export.
Technical Specification:
| CAPACITY (KW) | 1 |
|---|---|
| MODEL NUMBER | VS-101S |
| INPUT (DC) | |
| Max. DC input power (KW) | 1.1 |
| Max. DC I/P (Vdc) | 550V |
| Max. MPPT I/P Current (A) | 20A |
| MPPT Short Circuit Current (A) | 30A |
| MPPT Tracking Voltage (Vdc) | 70-550V |
| Min. Start Voltage (V) | 80V |
| Number of MPPT Tracker | 1 |
| Strings per MPPT Tracker | 1 |
| OUTPUT (AC) | |
| Rated output power (KW) | 1 |
| Rated Grid Voltage (V) | 230V |
| Voltage Operating Range (V) | 140V – 285V |
| Rated Grid freq. (Hz) / Range | 50Hz ( + – 5%) |
| Rated output current AC (A) | 4.8 |
| AC Connection | P + N + PE |
| THDI (%) | <3% |
| Output Power factor | 0.9 leading to 0.9 lagging |
| EFFICIENCY | |
| Max. conversion Efficiency (%) | 97.5% |
| Max. Euro Efficiency (%) | 97.3% |
| MPPT Efficiency (%) | >99% |
| PROTECTION | |
| Anti-Islanding Protection | YES |
| DC Reverse Polarity Protection | YES |
| Insulation Resistance Protection | YES |
| Ground Fault Protection | YES |
| Output Over Current Protection | YES |
| Output Short circuit Protection | YES |
| Output Over Voltage Protection | YES |
| DC Isolator Switch | NO |
| Surge Protection | DC: Type III / AC: Type III |
| GENERAL DATA | |
| Dimensions (W*H*D) mm | 280W*310H*184D |
| Weight (Kg) | 6.35 |
| Topology | Transformerless |
| Noise Emission (dB) | ≤25dB |
| Display | LED with LCD Display |
| Cooling Method | Natural Cooling |
| Operating ambient Temperature | (-25°C ~ +65°C) |
| Operating Humidity | 0% – 100% |
| Max. Operating Altitude (m) | 2000 (>2000 Derating) |
| Ingress Protection | IP65 |
| Standard Warranty | 10 Years |
| CONNECTION TYPE | |
| DC connectors | MC-4 |
| Ingress AC plug | IP65 rated plug |
| Communication Modes | WiFi / GPRS / RS 485 / Local Monitoring |
| Remote Monitoring | YES |
