10KW Hybrid Solar Inverter
Hybrid Inverter - Single Phase
Hybrid Inverter - Three Phase

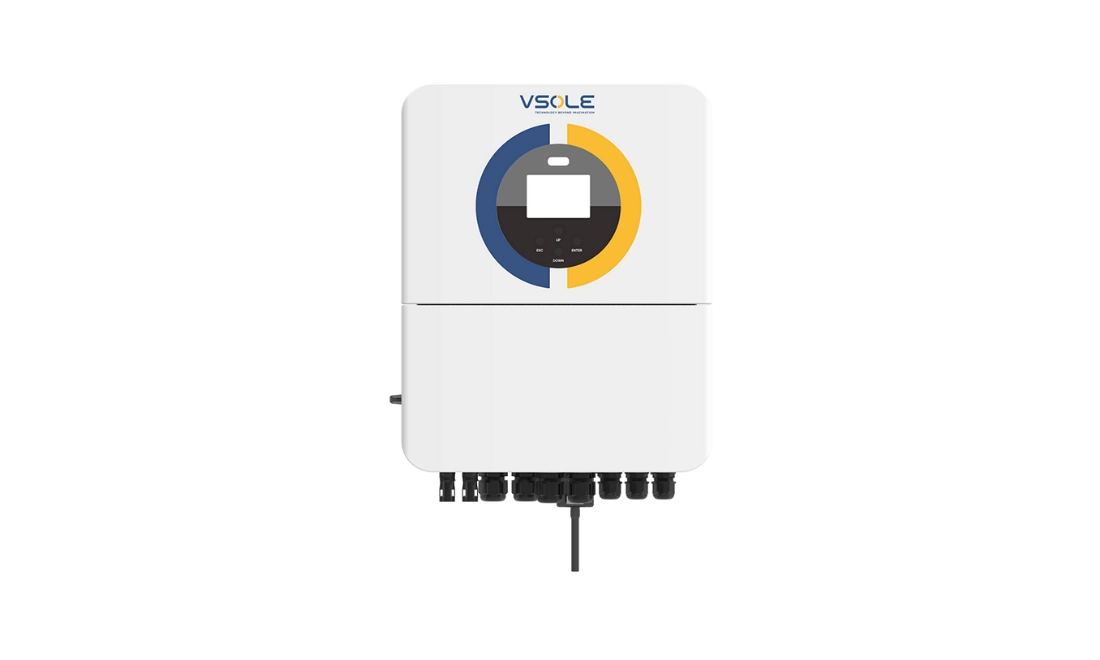

About 10KW Solar Inverter
The 10kW hybrid solar inverter is a high-performance energy solution designed to cater to both Single Phase and Three Phase systems. It seamlessly integrates solar energy, battery storage, and grid connectivity to deliver efficient energy management and reliable backup power. Perfect for large homes and small commercial setups, this inverter offers unmatched flexibility and performance for modern energy needs.
Configurations
Single Phase:
Tailored for residential systems, this configuration combines solar power and battery storage to ensure uninterrupted power supply while reducing dependence on the grid. It’s ideal for homes needing backup during outages or off-grid functionality.Three Phase:
Built for larger homes or small businesses, the three-phase configuration ensures balanced power distribution and optimized efficiency. It’s perfect for energy-intensive setups, delivering consistent and reliable performance for higher demands.
Authorized V-Sole Dealer
As an authorized dealer of V-Sole inverters, we bring you top-quality solar solutions built with advanced technology, robust design, and exceptional reliability. V-Sole inverters are trusted for their superior performance, durability, and ease of use, making them a preferred choice for modern energy systems.
The 10kW Hybrid Solar Inverter combines intelligent energy management, advanced safety features, and durable construction to provide long-lasting reliability. Its compact design and user-friendly interface make it easy to install and monitor, ensuring a seamless energy experience.
Power your home or business with the 10kW Hybrid Solar Inverter today for energy independence, reliable backup power, and significant savings!
For More Info:

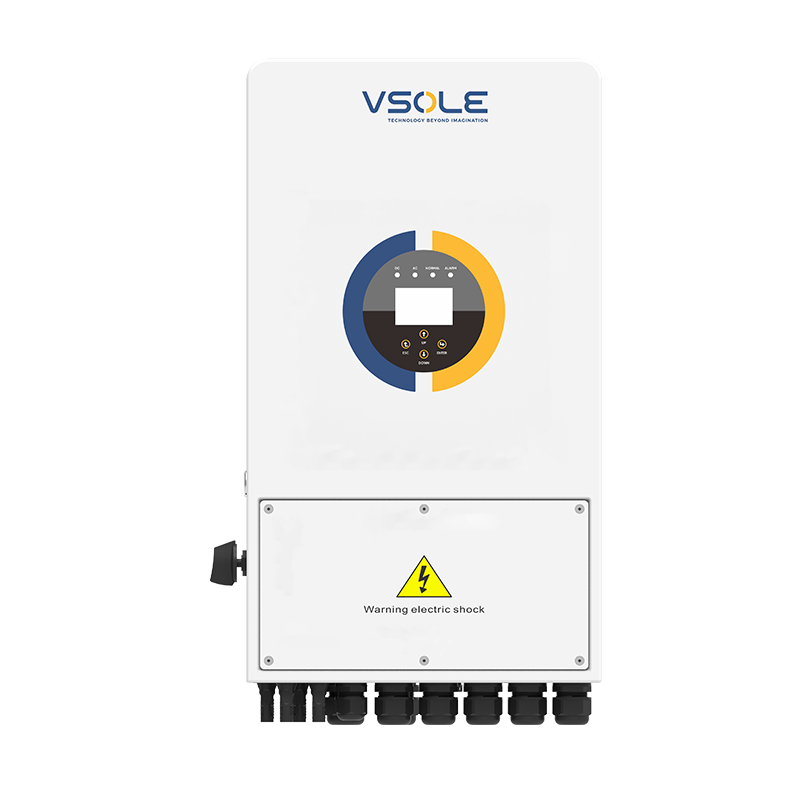

HYBIRD INVERTER - SINGLE PHASE
Advanced Features:
- Seamless changeover in just 4ms, making it suitable for use as a UPS.
- Ensures enhanced battery performance and protection for Li-ion, Lead Acid, or LiFePO4 batteries.
- Delivers 100% unbalanced load across each phase, with up to 50% of the rated power on any phase (Three Phase).
- Handles blackouts and brownouts efficiently, with or without batteries, and supports grid export.
- Programmable preference for PV, Battery, or Grid as the primary power source.
- Reduces or limits maximum demand to avoid penalties with Grid Peak Compensation Mode.
- Optimized for high-demand appliances like air conditioners, water heaters, and grid-tie inverters.
- Compatible with both DC and AC coupling, enabling seamless integration with existing solar systems.
- Supports up to 16 units in parallel for both on-grid and off-grid configurations, and allows multiple batteries in parallel.
- Charging and discharging currents up to 240A with transformer isolation design for 48V low-voltage batteries.
- Supports direct battery charging and energy storage from diesel generators, ensuring uninterrupted 24/7 power.
- Achieves maximum conversion efficiency of 97.6% and battery charging efficiency of 95.5%.
Technical Specification:
| CAPACITY (KW) | 10KW |
|---|---|
| MODEL NUMBER | VS-HY10T |
| BATTERY INPUT DATA | |
| Battery Type | Lead-acid or Lithium-lon |
| Battery Voltage Range (V) | 40~60 |
| Max. Charging Current (A) | 220 |
| Max. Discharging Current (A) | 220 |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaptation to BMS |
| PV STRING INPUT DATA | |
| Max. DC Input Power (W) | 12000 |
| Rated PV Input Voltage (V) | 370V |
| Voltage Operating Range (V) | 125~500V |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Full Load DC Voltage Range (V) | 300-425 |
| PV Input Current (A) | 26+26 |
| Max. PV Isc Current (A) | 34+34 |
| Number of MPPT/Strings per MPPT | 2/2+2 |
| AC OUTPUT DATA | |
| Rated AC Output Power (W) | 10000 |
| Max. AC Output Power (W) | 11000 |
| AC Output Rated Current (A) | 43.5 |
| Max. AC Output Current (A) | 50 |
| Max. Continuous AC Passthrough Current (A) | 50 |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| Power Factor | 0.9 leading to 0.9 lagging |
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) |
| Grid Connection | Single Phase (L+N+PE) |
| DC Injection Current (mA) | <0.5% IN |
| EFFICIENCY | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97% |
| MPPT Efficiency | 99.90% |
| PROTECTION | |
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection |
| Output Over Voltage Protection | DC Type II / AC Type III |
| GENERAL DATA | |
| Operating Temperature Range (°C) | (-45°C ~ 60°C) |
| Cooling | Intelligent Cooling |
| Noise (dB) | ≤30db |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 35.6 |
| Dimensions (W*H*D) mm | 420W x 670H x 223D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Standard Warranty | 5 Years (Extendable up to 10 Years) |

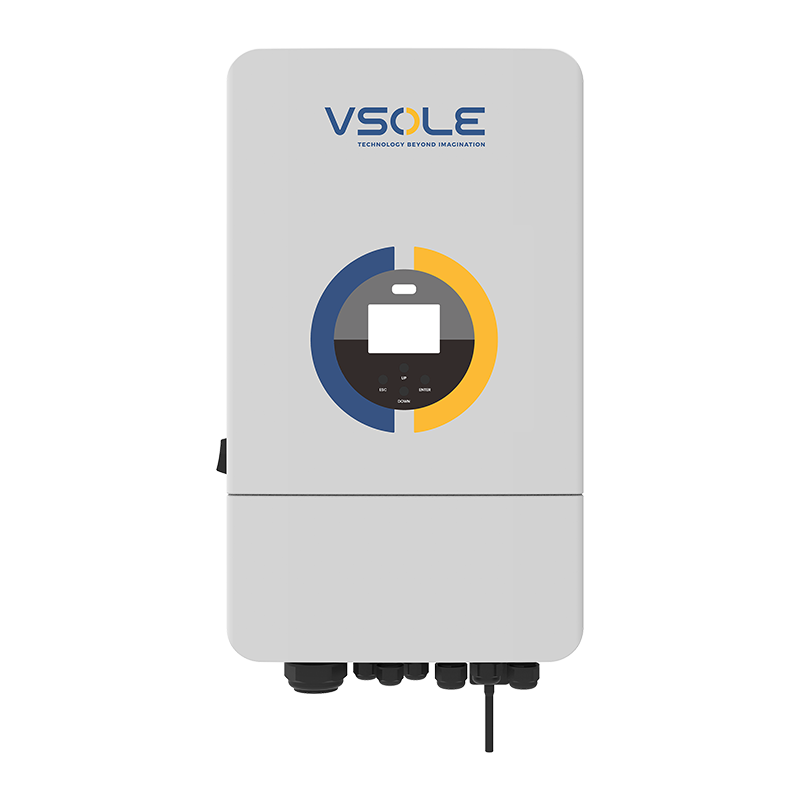

HYBRID INVERTER - THREE PHASE
Advanced Features:
- Seamless changeover in just 4ms, making it suitable for use as a UPS.
- Ensures enhanced battery performance and protection for Li-ion, Lead Acid, or LiFePO4 batteries.
- Delivers 100% unbalanced load across each phase, with up to 50% of the rated power on any phase (Three Phase).
- Handles blackouts and brownouts efficiently, with or without batteries, and supports grid export.
- Programmable preference for PV, Battery, or Grid as the primary power source.
- Reduces or limits maximum demand to avoid penalties with Grid Peak Compensation Mode.
- Optimized for high-demand appliances like air conditioners, water heaters, and grid-tie inverters.
- Compatible with both DC and AC coupling, enabling seamless integration with existing solar systems.
- Supports up to 16 units in parallel for both on-grid and off-grid configurations, and allows multiple batteries in parallel.
- Charging and discharging currents up to 240A with transformer isolation design for 48V low-voltage batteries.
- Supports direct battery charging and energy storage from diesel generators, ensuring uninterrupted 24/7 power.
- Achieves maximum conversion efficiency of 97.6% and battery charging efficiency of 95.5%.
Technical Specification:
| CAPACITY (KW) | 10 |
|---|---|
| MODEL NUMBER | VS-HY10T |
| BATTERY INPUT DATA | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 160~700 |
| Max. Charging Current (A) | 210 |
| Max. Discharging Current (A) | 210 |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV STRING INPUT DATA | |
| Max. DC Input Power (W) | 13000 |
| Rated PV Input Voltage (V) | 1000 |
| Start-up Voltage (V) | 180 |
| MPPT Voltage Range (V) | 150-850 |
| Full Load DC Voltage Range (V) | 350-650 |
| PV Input Current (A) | 26+26 |
| Max. PV Isc Current (A) | 39+39 |
| Number of MPPT/Strings per MPPT | 2/2+2 |
| AC OUTPUT DATA | |
| Rated AC Output Power (W) | 10000 |
| Max. AC Output Power (W) | 11000 |
| AC Output Rated Current (A) | 14.5 |
| Max. AC Output Current (A) | 15.9 |
| Max. Continuous AC Passthrough Current (A) | 80 |
| Peak Power (off grid) | 1.5 times of rated power, 10 S |
| Power Factor | 0.9 leading to 0.9 lagging |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Connection | Three Phase(3L+N+PE) |
| DC Injection Current (mA) | <0.5% IN |
| EFFICIENCY | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97% |
| MPPT Efficiency | 99.90% |
| PROTECTION | |
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection. |
| Output Over Voltage Protection | DC Type II / AC Type III |
| GENERAL DATA | |
| Operating Temperature Range (°C) | (-45°C ~ 60°C) |
| Cooling | Smart Cooling |
| Noise (dB) | ≤ 45db |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 35.2 |
| Dimensions (W*H*D) mm | 386W x 660H x 250D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Standard Warranty | 5 Years (Extendable up to 10 Years) |
