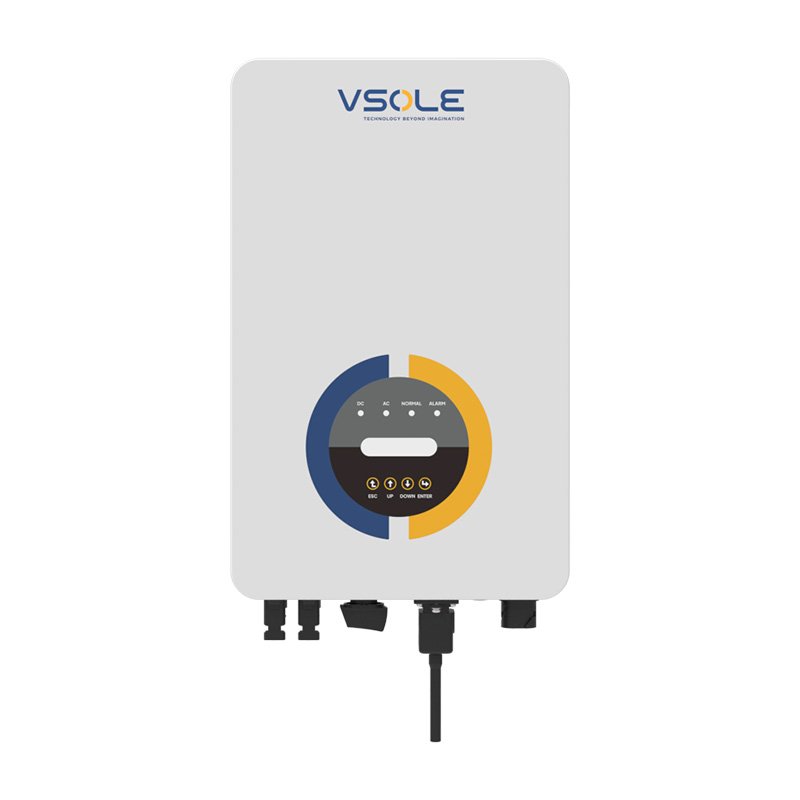

10KW Grid-Tie Solar Inverter
Grid Tie Inverter Three Phase
About 10KW Solar Inverter
The 10kW grid-tie solar inverter is a robust energy solution designed for Three Phase systems. It ensures seamless grid integration, efficient solar energy conversion, and reliable performance, making it ideal for larger residential setups, small commercial applications, and energy-intensive systems.
Configurations:
- Three Phase:
Perfect for systems requiring balanced power distribution and enhanced efficiency. This configuration seamlessly integrates solar energy with grid power to optimize energy usage and significantly reduce electricity costs.
Authorized V-Sole Dealer
As an authorized dealer of V-Sole inverters, we provide state-of-the-art solar solutions featuring cutting-edge technology, exceptional durability, and superior reliability. V-Sole inverters are trusted for their high efficiency and ease of use, ensuring smooth and reliable operation.
The 10kW Grid-Tie Solar Inverter combines advanced energy management, a durable design, and user-friendly features to deliver long-term energy savings and reliability.
Choose the 10kW Grid-Tie Solar Inverter today for efficient, cost-effective, and sustainable energy solutions tailored to your needs.
For More Info:
GRID TIE INVERTER - THREE PHASE
Advanced Features:
- Maximum efficiency reaches up to 98.9%, ensuring optimal energy conversion.
- Comes with a heavy-duty, built-in DC isolation switch for enhanced safety.
- special external color with Epoxy Novolac coating for better heat dissipation and durability.
- Supports a maximum DC input current per string, compatible with solar panels up to 800W.
- Equipped with Type II DC/AC SPD and frequency drop control technology for better protection.
- Higher capacity models include intelligent fan-based cooling for efficient heat management.
- Compact, lightweight design allows for easy installation and space-saving.
- Supports RS485 and remote monitoring via Wi-Fi or GPRS for easy control and tracking.
- Includes multiple protective features to ensure the system operates safely and efficiently.
- Allows for DC overloading up to 20%, providing flexibility in handling high loads.
Technical Specification:
| CAPACITY (KW) | 10KW |
|---|---|
| MODEL NUMBER | VS-102T |
| INPUT (DC) | |
| Max. DC Input Power (KW) | 12.0 |
| Max. DC I/P (Vdc) | 1000V |
| Max. MPPT I/P Current (A) | 20A + 26A |
| MPPT Short Circuit Current (A) | 30A + 39A |
| MPPT Tracking Voltage (Vdc) | 180 – 1000V |
| Start-Up Voltage (V) | 200V |
| Number of MPPT Tracker | 2 |
| Strings per MPPT Tracker | 1 + 2 |
| OUTPUT (AC) | |
| Rated Output Power (KW) | 10 |
| Rated Grid Voltage (V) / Range | 415V |
| Voltage Operating Range (V) | 280 – 455V |
| Rated Grid Frequency (Hz) / Range | 50Hz/(+-5%) |
| Rated Output Current AC (A) | 15.3 |
| AC Connection | 3P + N + PE |
| THDI (%) | <3% |
| Output Power Factor | 0.9 leading to 0.9 lagging |
| EFFICIENCY | |
| Max. Conversion Efficiency (%) | 98.3% |
| Max. Euro Efficiency (%) | 97.5% |
| MPPT Efficiency (%) | >99% |
| PROTECTION | |
| Anti-Islanding Protection | YES |
| DC Reverse Polarity Protection | YES |
| Insulation Resistance Protection | YES |
| Ground Fault Protection | YES |
| Output Over Current Protection | YES |
| Output Short Circuit Protection | YES |
| Output Over Voltage Protection | YES |
| DC Isolator Switch | YES |
| Surge Protection | DC: Type II / AC: Type II |
| GENERAL DATA | |
| Dimensions (W*H*D) mm | 362W*527H*220D |
| Weight (Kg) | 20.0 |
| Topology | Transformerless |
| Noise Emission (dB) | <45dB |
| Display | LED with LCD Display |
| Cooling Method | Intelligent Fan Cooling |
| Operating Ambient Temperature | (-25°C ~ +65°C) |
| Operating Humidity | 0% – 100% |
| Max. Operating Altitude (m) | 2000 (>2000 Derating) |
| Ingress Protection | IP65 |
| Standard Warranty | 10 Years |
| CONNECTION TYPE | |
| DC Connectors | MC-4 |
| Ingress AC Plug | IP65 rated plug |
| Communication Modes | WiFi / GPRS / RS 485 / Local Monitoring |
| Remote Monitoring | YES |
